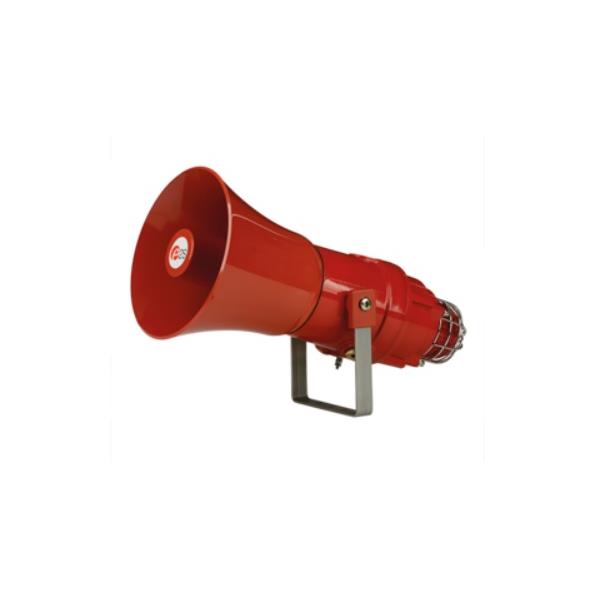

Ex Combi D1xC2X10RAC230AB1AR/A - AMBER
114dB(A) 10J IP66 64T ClassI/Div1
Varenr:
D1XC2X10RAC230AB1ARA
|
|
D1xC2X10R Radial Alarm Horn & Xenon Strobe
114dB(A) horn & 10 Joule Xenon. The D1xC2X10R is a high output alarm horn sounder with omni-directional radial horn combined with a 1,000,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xC2X10R is suitable for all Class I Division 1 & Zone 1 explosion proof signaling applications. The DC version is approved for public mode fire alarm use (alarm horn) and private mode fire alarm use (strobe beacon).
The alarm horn & Xenon strobe may be powered from a common or dual supply allowing simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently selectable. Each of the available 4 stage/channels can be remotely triggered e.g. via an external relay.
Specification:
| | |
| Alarm Horn: | |
| | |
| Maximum output: | 114dB(A) @ 1 metre [105dB(A) @ 10ft/3m] |
| Nominal output: | 109dB(A) @ 1m +/- 3dB - Tone 2 |
| [100dB(A) @ 10ft/3m] |
| No. of tones: | 64 (UKOOA / PFEER compliant) |
| No. of stages: | 4 |
| Volume control: | Adjustable -12dB(A) |
| Effective range: | 125m/410ft @ 1KHz |
| Supply Voltages: | 24vDC; 115vAC; 230vAC |
| Stage switching: | DC units: negative or positive |
| AC units: common supply line |
| | |
| Strobe Beacon: | |
| | |
| Energy: | 10 Joules (10Ws) |
| Flash rates: | Option 1: 1Hz (60 fpm) |
| Option 2: 1.5Hz (90 fpm) |
| Option 3: Double Strike |
| Peak Candela: | 1,000,000 cd - calculated from energy (J) |
| Effective Intensity: | 500 cd - calculated from energy (J) |
| Peak Candela: | 85,544 cd* - measured ref. to I.E.S. |
| Effective Intensity: | 260 cd* - measured ref. to I.E.S. |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear, Magenta |
| Tube life: | Emissions are reduced to 70% after 8 mill. flashes |
| | |
| General: | |
| | |
| Ingress protection: | EN60529: IP66 |
| UL50E / NEMA250: 4 / 4X / 3R / 13 |
| Enclosure material: | Marine grade aluminium LM6- copper free |
| Chromated & powder coated - corrosion proof |
| Colour: | Red (RAL3000), Grey (RAL7038) |
| Cable entries: | 1 x 1/2"NPT & 2 x M20 x 1.5mm |
| 1 x 1/2"NPT & 2 x 1/2"NPT |
| 1 x 1/2"NPT & 2 x 3/4"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Grounding stud: | M5 |
| Operating temp: | 24vDC & 115vAC: -40° to +70°C [-40° to +158°F] |
| 230vAC: -40° to +55°C [-40° to +131°F] |
| Storage temp: | -50° to +70°C [-58° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 5.0kg/11.4lbs |
| | |
Current Consumption:
| Voltage: | Range: | Alarm Horn: | Xenon Strobe: | Combined: |
| | | | | |
| 24vDC | 20-28vDC | 923mA | 673mA | 1596mA |
| 115vAC | 110-120vAC | 267mA | 247mA | 514mA |
| 50/60Hz | | | |
| 230vAC | 220-240vAC | 159mA | 120mA | 279mA |
| 50/60Hz | | | |
Part Codes:
(The actual choices for this particular model are highlighted in red)
| Version: | Part code: | |
| Product type: | D1xC2X10 | |
| Horn type: | R | Omni-directional radial horn |
| | | |
| Voltage: [u] | 024 | 20-28vDC |
| 115 | 110-120vAC |
| 230 | 220-240vAC |
| | | |
| Cable Entry Type: [e] | A | 1 x 1/2"NPT & 2 x M20 x 1.5mm |
| B | 1 x 1/2"NPT & 2 x 1/2"NPT |
| C | 1 x 1/2"NPT & 2 x 3/4"NPT |
| | | |
| Adaptor/Stopping | B | Brass |
| plug material: [m] | N | Nickel Plated |
| S | Stainless Steel |
| | | |
| Bracket and guard | 1 | A2 304 Stainless Steel |
| material: [s] | 2 | A4 316 Stainless Steel |
| | | |
| Product version: [v] | A1 | Gas environments Class I / Zone1 |
| | | |
| Enclosure colour: [x] | G | Grey RAL7038 |
| R | Red RAL3000 |
| | | |
| Lens colour: .[y] | R | R Red |
| A | A Amber (Orange) |
| Y | Y Yellow |
| G | G Green |
| B | B Blue |
| C | C Clear (Transparent) |
| M | M Magenta |
| Example part code: | D1xC2X10 R [u] [e] [m] [s] [v] [x] . [y] |
| Makes this part code : | D1xC2X10 R 230 A B 2 A1 G / Y |
| | |
| Explanation of above | |
| Product type: | "D1xC2X10" |
| Horn Type: | "R" = Flare re-entrant horn |
| Voltage: [u] | "230" = 220-240vAC |
| Cable Entry: [e] | "A" = 1 x 1/2"NPT & 2 x M20 x 1.5mm |
| Adaptor/Stopping | |
| plug material: [m] | "B" = Brass |
| Bracket and guard | |
| material: [s] | "2" = A4 316 Stainless Steel Guard |
| Product version: [v] | "A1" = IECEx & ATEX certified |
| Enclosure colour: [x] | "G" = Red Enclosure colour |
| Lens colour: .[y] | / "Y" = (Y) Yellow Lens colour |
| | |
| Ratings: | |
| | |
| A1: | Gas version |
| NEC / CEC: | Class I Div 1 ABCD T5/T6 Ta -40°C to +55/+50°C |
| Class I Div 2 ABCD T5/T6 Ta -40°C to +55/+50°C |
| Class I Zone 1, 2 IIC T5/T6 Ta -40°C to +55/+50°C |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.15 | 0.51 | 0.86 | 0.49 | 0.12 | 1.00 |
