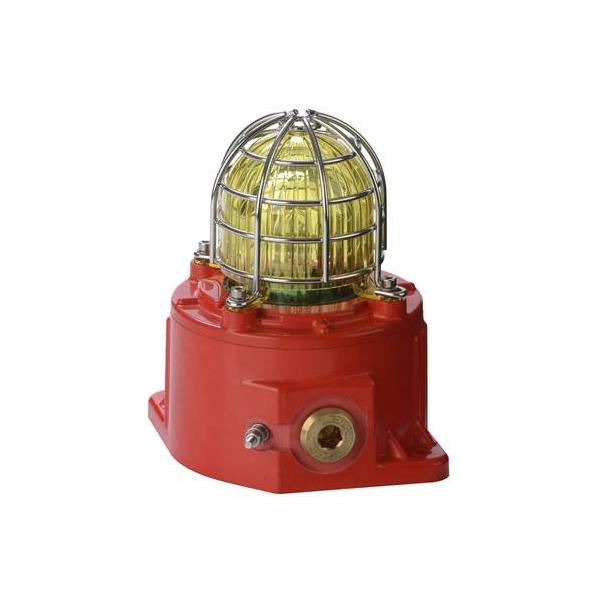

Ex-XenonStrobe GNExB1 X05 24vDC YELLOW
5J 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6
Varenr:
GNExB1X05024AB2A1R.3
|
|

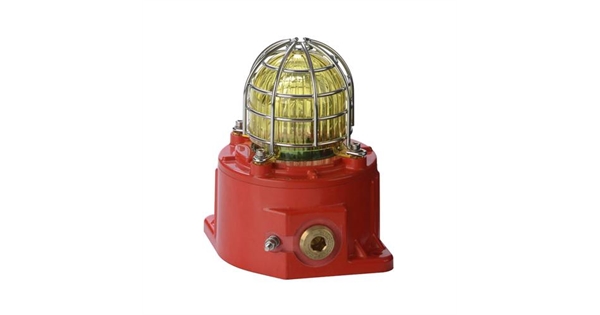

Ex Xenon Strobe GNExB1 X05 24vDC with YELLOW lens
The GNExB1X05 is an IECEx & ATEX approved explosion proof 5 Joule Xenon beacon. The robust IP66 corrosion proof GRP enclosure and extended temperature range ensures the GNExB1X05 is suitable for all Zone 1, 2, 21 & 22 hazardous location signalling applications.
The GNExB1X05 beacon produces over 117cd effective - a high output Xenon strobe flash required for safety signalling. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The GRP enclosure features a threaded flame path, dual cable entries and a large termination area - all of which significantly reduce installation time.
Features:
• Robust, corrosion proof GRP (glass reinforced polyester) enclosure
• Ingress protection IP66
• Automatic synchronisation on multi-beacon systems
• DC voltage versions feature a choice of three flash rates
• DC voltage units feature remote initiation of flash rate
• User replaceable Xenon tube mechanically secured against shock & vibration
• Glass lens & Stainless Steel guard
• Field replaceable colour filter (easaly change the lens colour)
• UV stable PC field replaceable lens colour filter
• Stainless steel fixings
• Dual cable entries
• Duplicate cable terminations (in & out for daisy-chain installations)
Approvals:
• IECEx UL 15.0003X
IEC 60079-0 : 2 011
IEC 60079-1 : 2 014
IEC 60079-31 : 2 013
• ATEX DEMKO 15ATEX1448X
EN 60079-0 : 2 012
EN 60079-1 : 2 014
EN 60079-31 : 2 014
Coding:
• II 2 G Ex db IIC G b T6 Ta -50°C to +40°C
• II 2 G Ex db IIC G b T5 Ta -50°C to +55°C
• II 2 G Ex db IIC G b T4 Ta -50°C to +70°C
• II 2 D Ex tb IIIC Db T110°C Ta -50°C to +70°C
Specification:
| Energy: | 5 Joules (5Ws) |
| Flash rate: | DC voltages: 1Hz (60fpm), 1.5Hz (90fpm) & double flash |
| AC voltages: 1Hz (60fpm) |
| | |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Effective Intensity cd: | 250 cd - calculated from energy (J) |
| Peak Candela: | 45,449 cd - measured ref to I.E.S |
| Effective Intensity cd: | 117.93 cd - measured ref to I.E.S |
| | |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta, |
| Voltages DC: | 12vDC; 24vDC; 48vDC |
| Voltages AC: | 115vAC; 230vAC |
| Ingress protection: | IP66 |
| | |
| Enclosure: | UV stable GRP (glass reinforced polyester) |
| Colour: | Natural Red - can be provided in alternative colours |
| Cable entries: | 2 x M20 ISO (1 stopping plug inc.) |
| | Adaptors to M25, 1/2" & 3/4" NPT can be specified |
| Terminals: | 0.5 to 2.5mm² |
| | |
| Temp. range: | -50° to +70°C (-58°F to +158°F) |
| Tube life: | Emissions are reduced to 70% after 8 million flashes |
| Weight: | 1.5kg / 3.3lbs |
*All candela data is representative of performance with clear lens at optimum voltage.
Part Codes:
(The actual choices for this particular model are highlighted in red)
| Version: | Part code: | |
| | | |
| Product type: | GNExB1 | |
| | |
| Type: | X05 | Xenon Beacon - 5 Joule |
| | |
| Voltage: [u] | 012 | 10-14vDC |
| 024 | 20-28vDC |
| 048 | 42-54vDC |
| 115 | 110-125vAC |
| 230 | 220-240vAC |
| | |
| Cable Entry Type: [e] | A | 2 x M20 x 1.5mm |
| B | 2 x 1/2" NPT - adaptors |
| C | 2 x 3/4" NPT - adaptors |
| D | 2 x M25 x 1.5mm - adaptors |
| E | 1 x 1/2" NPT - adaptor |
| F | 1 x 3/4" NPT - adapator |
| G | 1 x M25 x 1.5mm - adaptor |
| | |
| Adaptor/Stopping | B | Brass |
| plug material: [m] | N | Nickel Plated |
| S | Stainless Steel |
| | |
| Guard material: [s] | 1 | A2 304 Stainless Steel |
| 2 | A4 316 Stainless Steel |
| | |
| Product version: [v] | A1 | IECEx & ATEX |
| | |
| Enclosure colour: [x] | R | Red |
| S | Special - contact E2S for |
| | alternative enclosure colours |
| | |
| Lens colour: /[y] | 1 | R Red |
| 2 | A Amber (Orange) |
| 3 | Y Yellow |
| 4 | G Green |
| 5 | B Blue |
| 7 | C Clear (Transparent) |
| 8 | M Magenta |
| Example part code: | GNExB1 X05 [u] [e] [m] [s] [v] [x] . [y] |
| Makes this part code : | GNExB1 X05 024 A B 2 A1 R .3 |
| | |
| Explanation of above | |
| Product type: | "GNExB1" |
| Type: | "X05" = 5 Joule Xenon Strobe Beacon |
| Voltage: [u] | "024" = 20-28vDC |
| Cable Entry: [e] | "A" = 2 x M20 entries |
| Stopping plug: [m] | "B" = Brass stopping plug |
| Guard material: [s] | "2" = A4 316 Stainless Steel Guard |
| Product version: [v] | "A1" = IECEx & ATEX certified |
| Enclosure colour: [x] | "R" = Red Enclosure colour |
| Lens colour: .[y] | ."3" = (Y) Yellow Lens colour |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.15 | 0.51 | 0.86 | 0.49 | 0.12 | 1.00 |
Current Consumption:
| Version: | | Voltage: | Current: |
| 12vDC | | 10-14vDC | 437mA |
| 24vDC | | 20-28vDC | 254mA |
| 48vDC | | 42-54vDC | 158mA |
| 115vAC | 50/60Hz | 110-125vAC | 95mA |
| 230vAC | 50/60Hz | 220-240vAC | 54mA |
Assemblies:
The GNExB1X05 is available as a plated assembly configured with up to 4 xenon strobe beacons with or without a GNExJ2 Ex d junction box. Contact us for further information.
