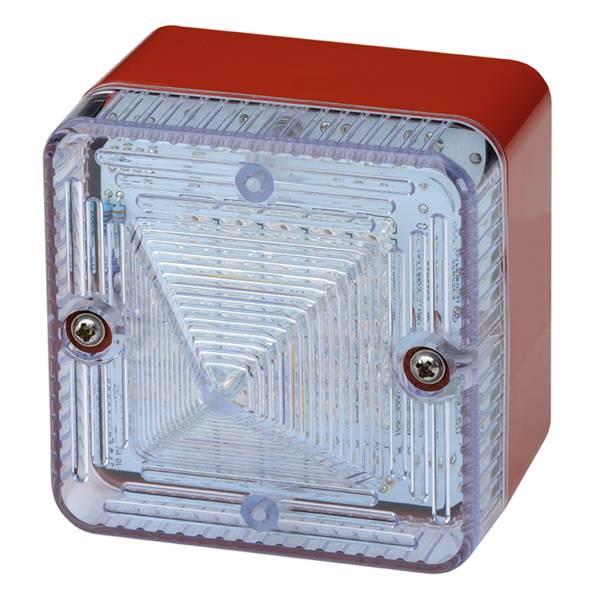

LED Beacon L101H-B 230vAC [red] AMBER
0/2Hz IP66 90-260VAC/DC without Lugs
|
|
L101H L.E.D. Beacon
The L101H is a compact, robust L.E.D array beacon ideal for all general signalling applications including status indication, security and process control.
The array of 24 Superflux type high output L.E.D’s generates over 120 candela of light output and can be user set to either steady of flashing mode.
Available in cULs approved version for general signalling use.
Features:
• Back boxes available with and without mounting lugs
• Tropicalisation available on request
• Can be stacked to create multi-signal units.
• Can be combined with AlertAlarm & Sonora audible signals
Approvals:
• UL & cULs approved: General signalling use.
• GOST-R certificate: POCC GB.JB05.H00144.
Specification:
| Light source: | High intensity L.E.D. array. |
| 24 x Superflux type high ouput L.E.D’s |
| Options: | Steady or 2Hz flash mode (on board selection) |
| Peak/Effective | |
| Intensity cd: | Green L.E.D: 176cd - measured ref. to I.E.S. |
| Terminals: | 0.5 to 4.0mm² cables. |
| L.E.D. colours: | Red, Amber, Green, Blue, White |
| Lens colour: | All L.E.D. colours use a Clear lens to maximise |
| output and to ensure the signal is most effective |
| in high ambient light levels. |
| | |
| General: | |
| | |
| Ingress Protection: | IP66 |
| Housing material: | UL94V0 & 5VA FR ABS |
| Housing colour: | RAL3000 Red, RAL7038 Grey, |
| White or Black |
| (Black back box is only available |
| as "A: A100 type" back box) |
| Lens material: | PC (Polycarbonate) |
| Fixings: | Stainless Steel |
| Operating temp: | -25° to +55°C [-13° to +131°F] |
| Storage temp: | -40° to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 0.20kg / 0.44Ibs |
Part Codes: L101H [b] [u] [x] / [y]
| Version: | Part code: | |
| | | |
| Product type: | L101H | High intensity LED Beacon |
| | | |
| Back box type: [b] | A | A100 type (standard) |
| (see drawings below) | B | Standard L101 type |
| S | Sonora type |
| M | Multi-purpose type |
| | | |
| Voltage: [u] | 024DC | 10-30vDC |
| 230AC | 90-260vAC/DC - 50/60Hz |
| | | |
| Housing colour: [x] | Bk | Black (standard) |
| | (A100 type Back box only!) |
| R | RAL3000 Red |
| G | RAL7038 Grey |
| W | White |
| | | |
| LED colour: / [y] | R | R: Red (.1) |
| A | A: Amber (.2) |
| G | G: Green (.4) |
| B | B: Blue (.5) |
| W | W: White (.6) |
Suffix part number with ‘-UL’ for UL approved version (M: Multi-purpose back box version only)
Back box types [b] :
| B: Standard L101 Back box | A: A100 type Back box |
| [x] Housing colours : R; G; W; | [x] Housing colours: R; G; W; Bk; |
 |  |
| | |
| S: Sonora type Back box | M: Multi-purpose Back box |
| [x] Housing colours: R; G; W; | [x] Housing colours: R; G; W; |
 |  |
Technical Data:
| Version: | Voltage: | Current mA: | Part Code: |
| | | | |
| DC024 | 10-30vDC | 155mA (@24vDC) | L101H [b] 024DC [x] / [y] |
| 230vAC | 90-260vAC/DC | 35mA (@230vAC) | L101H [b] 230AC [x] / [y] |
