Sounder MA1F AC230 BN1A1G
117dB(A)/114dB(A) IP66/67 64T
|
|

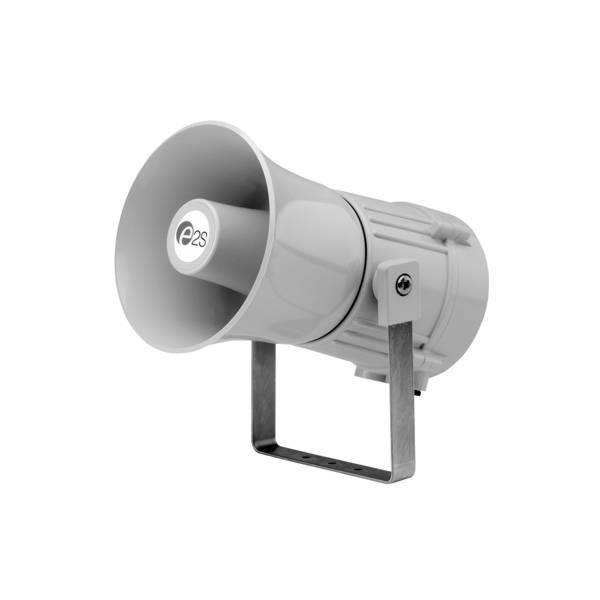

MA1F Alarm Horn Sounder IP66/67 Type 4/4X/13
The MA1F is a high output, 117dB(A) alarm horn sounder. Featuring a robust, fire retardant, IP66 & IP67 Type 4/4X/13 enclosure.
Description
The ‘M’ series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets. The MA1F features a compact flare horn and employs the latest in reliable D Class amplifier technology for superior sound output with low in-rush and, current consumption and wide input voltage range.
Features
• Ingress protection IP66/67 Type 4/4X/13
• Automatic synchronisation on multi-sounder systems
• Continuously rated
• Very large termination area
• Dual M20 or 1/2"NPT cable entries – adaptors available
• 316 (A4) Stainless steel mounting bracket
• Ratchet adjustable ‘U’ bracket for 360° positioning
• Duplicate pluggable cable terminations
• Conformal coated (tropicalised) electronics
• 64 alarm tone frequencies and 4 remotely activated alarm stages
• Positive or negative stage activation switching
• Alternative activation configurations available
• Available with custom tone configurations and frequencies
• The MA1F is a direct replacement for the MA112 alarm horn sounder.
Specification
| Maximum output: | 117dB(A) @ 1 m +/- 3dB |
| [108dB(A) @ 10ft/3m +/- 3dB] |
| | |
| Nominal output: | 114dB(A) @ 1m +/- 3dB |
| [103dB(A) @ 10ft/3m] +/- 3dB |
| | |
| No. of tones: | 64 (UKOOA / PFEER compliant) |
| | |
| No. of stages: | 4 |
| | |
| Volume control: | Full range control |
| | |
| Effective range: | 153m/502ft @ 1KHz |
| | |
| Voltages DC: | 10-60vDC |
| High voltage DC option available |
| | |
| Voltages AC: | 100-240vAC |
| | |
| In rush: | 815mA within 4.0ms @ 24vDC |
| | |
| Stage switching: | Negative, positive, voltage free |
| | |
| Ingress protection: | IP66 & IP67 Type 4/4X/13 |
| | |
| Enclosure matl: | High impact UL94 V0 & 5VA FR ABS |
| | |
| Colour: | Grey (RAL7038) or Red (RAL3000 |
| | |
| Cable entries: | 2 x M20; 1 x M20 & 1 × 1/2"NPT; 2 × 1/2"NPT |
| supplied with blanking plug |
| | |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| | |
| Line monitoring: | Diode polarized for use in supervised circuits |
| | |
| Operating temp: | -40 to +66°C [-40° to +151°F] |
| | |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| | |
| Relative humidity: | 95% at 20°C [68°F] |
| | |
| MTBF: | DC: 93.92 years / 822,706 hours – MIL 217 |
| AC: 149.81 years / 1,312,335 hours – MIL 217 |
| | |
| Weight: | DC: 2.50kg/5.5Ibs AC:3.00kg/6.6Ibs |
Current Consumption
| Product | Nominal | Voltage | Current |
| Version: | Voltage: | Range: | Consumption: |
| | | | |
| DC024 | 12vDC | 10-60vDC | 280mA |
| 24vDC | 10-60vDC | 224mA |
| 48vDC | 10-60vDC | 122mA |
| | | | |
| AC230 | 115Vac 50/60Hz | 100-240vAC | 100mA |
| 230Vac 50/60Hz | 100-240vAC | 64mA |
Part Codes
| Variable: | Identifier: | Description: |
| | | |
| Product type: | MA1 | Alarm horn sounder |
| | | |
| Flare type: | F | Flare re-entrant horn |
| | | |
| Voltage: | DC024 | 10-60vDC |
| AC230 | 100-240vAC 50/60Hz |
| | | |
| Cable entries: [e] | A | M20x1.5 & ½” NPT |
| | B | M20x1.5 & M20x1.5 (Default) |
| C | ½” NPT & ½” NPT |
| | | |
| Stopping plug material: [m] | N | Nylon |
| Bracket: [s] | 1 | 316 (A4) Stainless Steel |
| 3 | 316 (A4) Stainless Steel |
| | with Equipment tag |
| | | |
| Approvals: | A1 | CE, EAC, RMRS |
| | | |
| Enclosure: | R | Red (RAL 3000) |
| G | Grey (RAL7038) |
Accessories
| SP65-0001-A4 | Pole Mount Bracket Kit 2" St/St 316 (A4) |
| SP65-0003-A4 | Sunshade – St/St 316 (A4) |
Approvals
- EAC compliant: RU D-GB.GA05.B.12595-20
- Russian Maritime Register of Shipping
Cert: No. 19.00193.278
Note
The MA1F is a direct, backward compatible, replacement for the MA112 alarm horn sounder.
Tone Table
Please refer to the DataSheet
